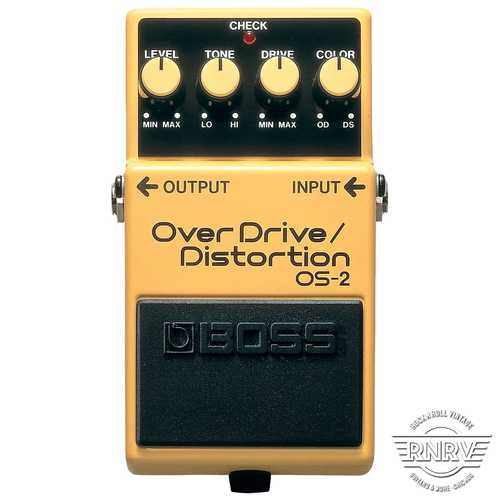

Boss OS-2 OverDrive/Distortion

DISTORTION AND OVERDRIVE TOGETHER AT LAST!

The OS-2 gives players a choice of overdrive or distortion or lets them combine both--all in a single compact pedal. Its distortion maintains the subtle nuances of single-coil guitar pickups.

Flexible distortion pedal capable of producing blended overdrive/distortion sounds

Provides both "over-the-top" distortion sounds and less extreme overdrive tones for rhythm playing

Includes Level, Tone, Drive and Color controls for precise tonal shaping

BOSS five-year warranty

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

Controls

• COLOR knob
• DRIVE knob
• TONE knob
• LEVEL knob
• Pedal switch

Indicator: CHECK indicator (Used for indication of check battery)

Connectors

• INPUT jack: 1/4-inch phone type
• OUTPUT jack: 1/4-inch phone type
• DC IN jack

Power Supply

• Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)

Current Draw: 12 mA

Expected battery life under continuous use

Carbon: Approx. 33.5 hours

Alkaline: Approx. 55 hours

*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Carbon-zinc battery (9 V, 6F22)Options (sold separately)AC adaptor: PSA series

SIZE AND WEIGHT

Width 73 mm 2-7/8 inches

Depth 129 mm 5-1/8 inches

Height 59 mm 2-3/8 inches

Weight (including battery)385 g 14 oz
