Offered for sale:

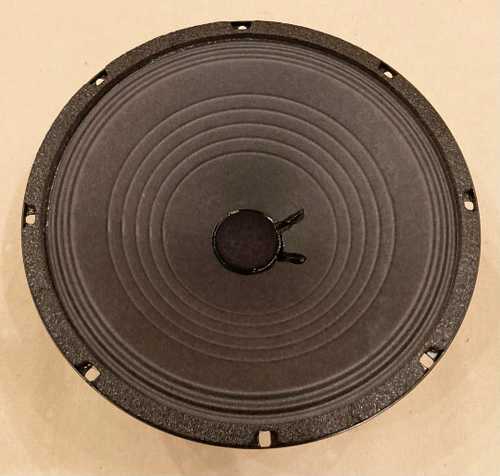

Used Eminence Legend 1028K guitar speaker.
This speaker is in excellent condition.
The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs.
Specifications
Nominal Basket Diameter
10", 254 mm
Nominal Impedance*
8 Ω
Power Rating*
Program Power
N/A
Watts
35 W
Resonance
95 Hz
Usable Frequency Range
100 Hz - 5 kHz
Sensitivity*
97.4 dB
Magnet Weight
6 oz.
Gap Height
0.25", 6.4 mm
Voice Coil Diameter
1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)
95 Hz
DC Resistance (Re)
5.8 Ω
Coil Inductance (Le)
0.51m H
Mechanical Q (Qms)
17.96
Electromagnetic Q (Qes)
1.61
Total Q (Qts)
1.47
Compliance Equivalent Volume (Vas)
31.5 liters / 1.11 cu.ft.
Peak Diaphragm Displacement Volume (Vd)
72.4 cc
Mechanical Compliance of Suspension (Cms)
0.19 mm/N
BL Product (BL)
5.7 T-M
Diaphragm Mass Inc. Airload (MMs)
15 grams
Efficiency Bandwidth Product (EBP)
59
Maximum Linear Excursion (Xmax)
2.1 mm
Surface Area of Cone (Sd)
344.9 cm2
Maximum Mechanical Limit (Xlim)
N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed
Acceptable
Vented
Acceptable
Driver Volume Displaced
0.027 cu.ft. / 0.77 liters
Overall Diameter
10.11", 256.8 mm
Baffle Hole Diameter
9.13", 231.9 mm
Front Sealing Gasket
Yes
Rear Sealing Gasket
N/A
Mounting Holes Diameter
0.22", 5.6mm
Mounting Holes B.C.D.
9.6", 243.8mm
Depth
4.8", 121.9 mm
Net Weight
2.9 lbs, 1.32 kg
Shipping Weight
4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction
Copper voice coil
Coil Former
Polyimide former
Magnet Composition
Alnico magnet
Core Details
Non-vented core
Basket Materials
Pressed steel basket
Cone Composition
Paper cone
Cone Edge Composition
Paper cone edge
Dust Cap Composition
Solid composition felt dust cap
“We test every used component when we buy it and make sure it up to our standards before we offer it for sale.”
