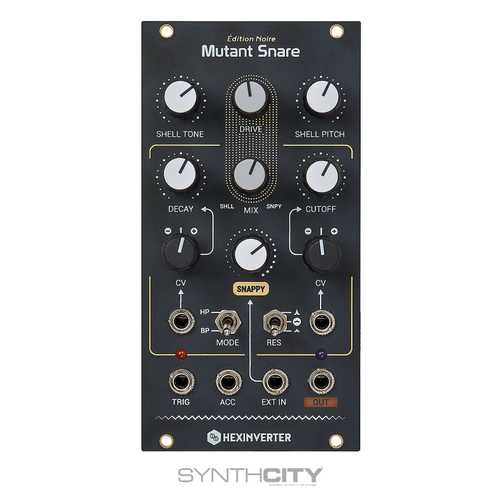

Hexinverter Mutant Snare Noir Edition

From classic electro snares to warping, alien percussion, the Mutant Snare is a radical departure from the static sounds of the 808!

MIX and DRIVE

MIX lets you blend between the SHELL and SNAPPY tones that make up the overall snare drum

turn up the DRIVE to get overdriven snare tones with intense harmonics. The purple LED indicates when the snare begins to overdrive

like the other Mutant Drums, signal levels have been normalized for modular level input and output (up to 20Vpp)

SHELL synthesizes the drum skins

analog bridged-t sinewave oscillators, for those organic-sounding tones we've come to love from the 808

TONE control blends between the two sinewaves of different frequency

SHELL PITCH lets you tune one of the sine waves, to change the pitch of your snare drum

SNAPPY adds some noise to the snare

an analog white noise generator feeds the SNAPPY circuit

an external input lets you patch any sound source you like into the SNAPPY generator

voltage control of SNAPPY decay

SNAPPY feeds into an analog selectable high-pass or band-pass filter

voltage control of filter cutoff frequency

when nothing is plugged into the cutoff CV input, the SNAPPY envelope OR the adjustable sinewave from the SHELL generator normalize through the CV attenuverter for cutoff CV. A jumper on the back of the module allows you to select which of these internal modulation signals are routed here

filter has three resonance settings: classic 808 (low resonance), high resonance, and self oscillation

bipolar attenuators (aka: 'attenuverters') on CV inputs
