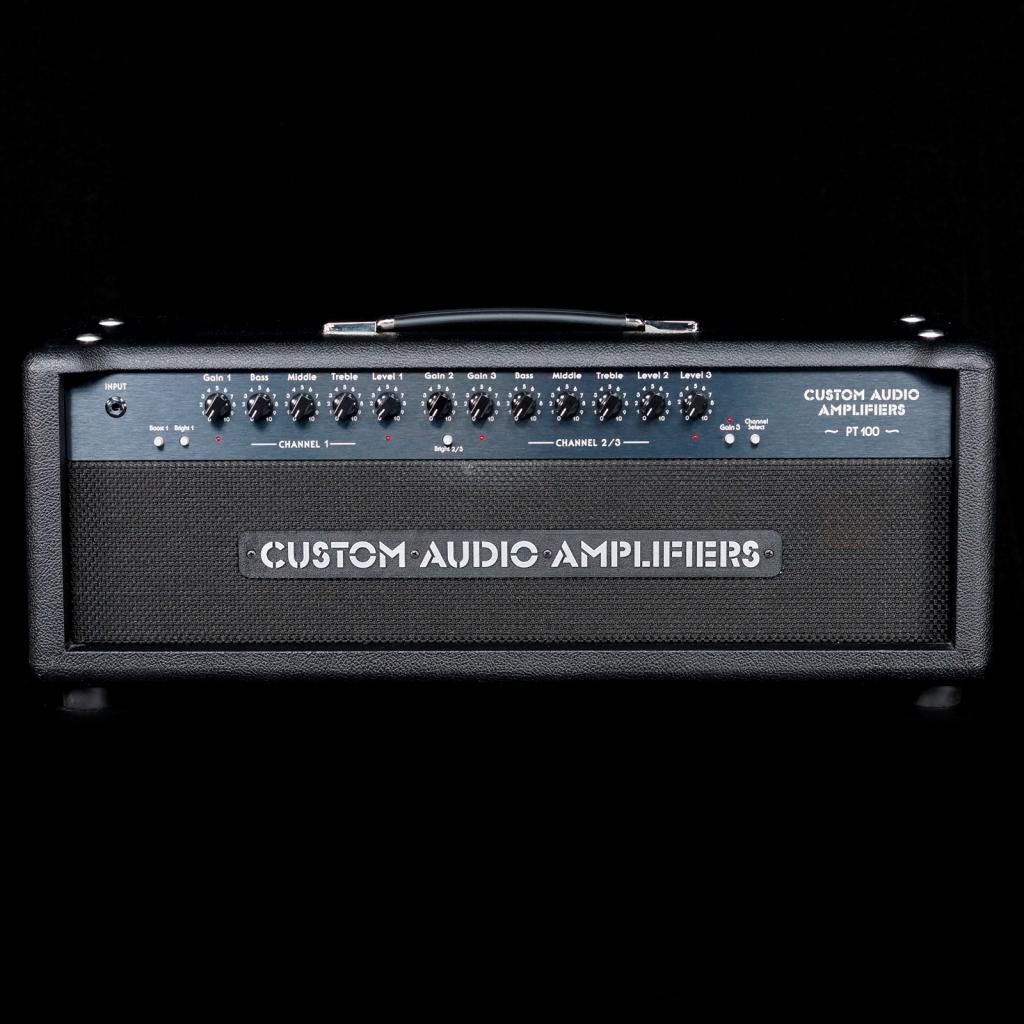

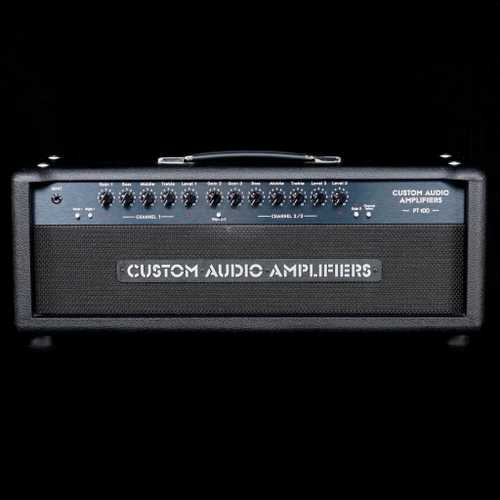

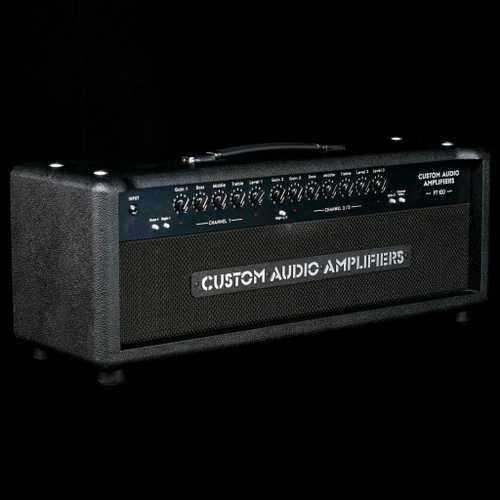

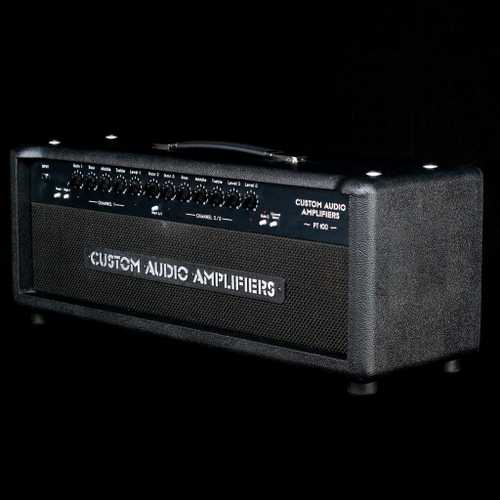

Suhr / Custom Audio Amplifiers Pete Thorn PT100 Black, Brand New, $3,295.00

Brand new Suhr / Custom Audio Amplifiers Pete Thorn Signature PT100 100 Watt Amplifier. This gorgeous guitar has American and British voicings. It absolutely kills and is one of the best sounding amps we have ever heard. Huge tone, authorized dealer, limitless possibilities. Brand new, two channel, unbelievable sounds. This amp is 4 EL-34 and 12AX7 Pre Amp all tube sound.

Designed in collaboration with known session and touring guitarist Pete Thorn, the PT-100 is a two-channel, 100 watt tube amplifier, loaded with a “Plexi” output transformer, four EL-34 power tubes and a tube buffer effects loop.

The PT-100 clean channel offers a full range of American voiced clean sounds. The overdrive channel, distinctly British, features dual gain and level controls for independent rhythm and lead tones.
POWER UP / POWER DOWN
With the power switch in the OFF position and the Standback/Standby switch in the Standby position (O), flip the power switch to the ON (I) position. Wait sixty seconds, then flip the Standby switch to the Standback (I) position. This will prolong tube life.
​
To power down, simply switch the amplifier from Standback to Standby, then flip power switch to the Off (O) position.
POWER SELECT SWITCH

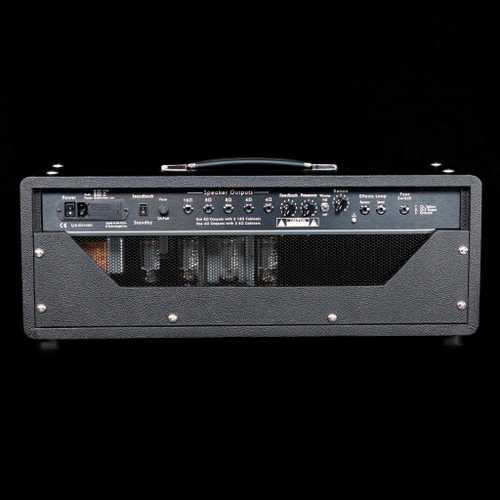

(Located on Back)
STANDBY / STANDBACK
(Located on Back)
I : ON, normal operation I : ON, normal operation
O : Power is switched OFF O: Power is switched OFF

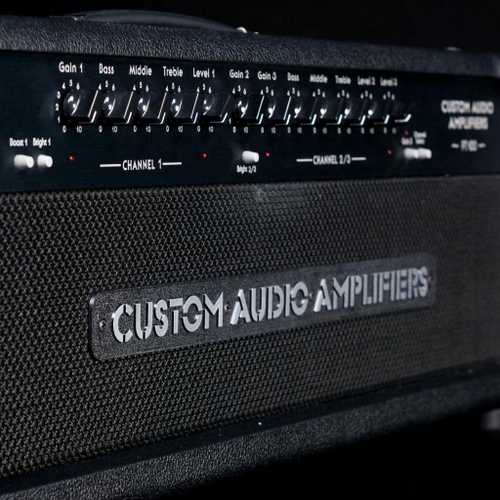

CHANNEL 1 (CLEAN)
BOOST 1:
Engages an additional gain stage for Channel 1 for a smooth crunchy overdrive sound.

BRIGHT 1:
Adds brightness and sparkle to Channel 1.

GAIN 1:
Adjusts the overall gain level of Channel 1.

BASS:
Adjusts the amount of low end. Turning it clockwise increases the amount of low frequencies, giving you a fuller tone. Turning it counter clockwise will reduce the effect and tighten up the bottom-end which is useful when performing at louder volumes.

MIDDLE:
Adjusts the midrange. Turning it clockwise increases the amount of mids, giving your tone a fatter response. Turning it counter clockwise will produce a mid-scooped sound.
​TREBLE:
Adjusts the top end. Turning it clockwise increases the amount of treble, giving your tone clarity and brightness. Turning it counter clockwise will produce a warmer sound which is excellent for dialing in smooth fluid-like lead tones.

​LEVEL 1 (MASTER VOLUME):
Adjusts the overall output of Channel 1

CHANNEL 2 / 3 (OVERDRIVE)
BRIGHT 2/3 SWITCH:
Adds brightness and cut to Channel 2/3.

GAIN 2:
Adjusts the overall gain level of Channel 2.

GAIN 3:
Adjusts the overall gain level of Channel 3.

BASS:
Adjusts the amount of low end. Turning it clockwise increases the amount of low frequencies, giving you a fuller tone. Turning it counter clockwise will reduce the effect and tighten up the bottom-end which is useful when performing at louder volumes.

MIDDLE:
Adjusts the midrange. Turning it clockwise increases the amount of mids, giving your tone a fatter response. Turning it counter clockwise will produce a mid-scooped sound.
​TREBLE:
Adjusts the top end. Turning it clockwise increases the amount of treble, giving your tone clarity and brightness. Turning it counter clockwise will produce a warmer sound which is excellent for dialing in smooth fluid-like lead tones.

​LEVEL 2 (MASTER VOLUME):
Adjusts the overall output of Channel 2

​LEVEL 3 (MASTER VOLUME):
Adjusts the overall output of Channel 3

​GAIN 3 SELECT SWITCH (FOOTSWITCHABLE):
Selects between Channel 2 and 3’s Gain and Level controls. Effective for setting up independent rhythm and lead sounds.

​CHANNEL SELECT SWITCH (FOOTSWITCHABLE):
Selects between Channels 1 and 2. To select Channel 2, press the Channel Select switch “IN”. The respective Gain 2 and Level 2 LED’s will illuminate.

FEEDBACK
Adjusts the overall feel of the power amp section from smooth and spongy at lower settings to tight and aggressive at higher settings.

PRESENCE
Adjusts the amount of high frequencies. Turning it clockwise will add more cut and sparkle.

WHOMP II SELECT SWITCH
Selects the amount of low-end resonance added to your amplifiers overall sound.
Full: + 4dB
Half: + 2dB
Off: Out of the circuit EFFECTS LOOP
The PT-100 comes standard with a tube buffered series effects loop which performs well with pedals and line-level rack gear. The return level control acts as the amp’s overall master volume and the Channel’s level controls will be your send levels.

FOOTSWITCH
The PT-100 comes equipped with a dual footswitch for remote control of channel selection and between Channel 2 and 3’s Gain and Level controls. A stereo (TRS) cable is provided.
