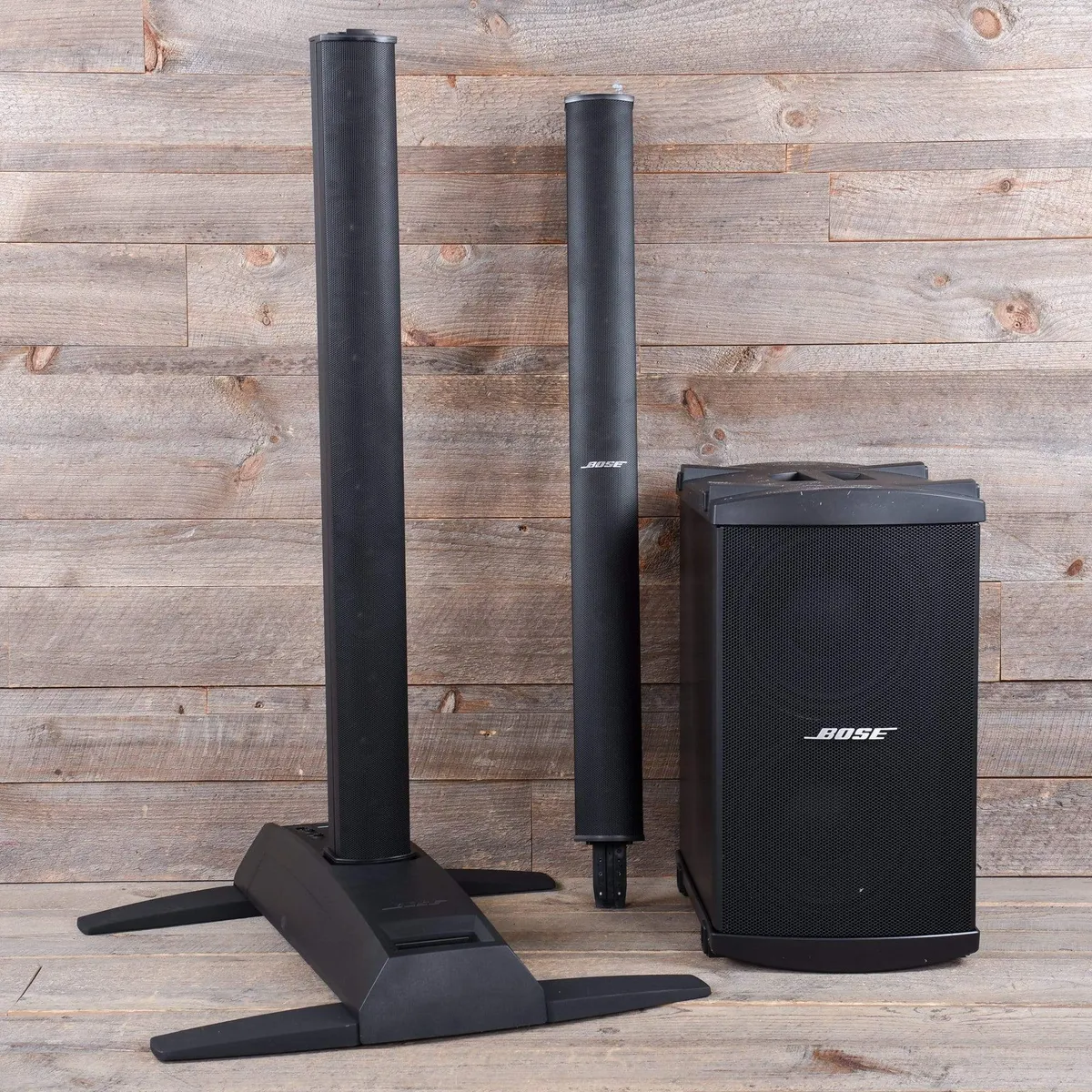

Bose L1 Model II B2 Bass Package PA System
From Bose:
Boost your performance with the L1 Model II system, our most advanced portable amplification system for musicians, DJs and public speakers. The loudspeaker delivers 180 degrees of horizontal sound coverage and our smoothest tonal balance—across the stage and throughout the room. Includes one B2 bass module for more flexibility and even greater power at the low end.
Like the original, award-winning Bose L1 system, the Model II sound system is an all-in-one innovation that replaces conventional monitors, mixers and PA speakers. And this professional sound system is packed with proprietary Bose technologies designed to improve your amplified sound.
Sound advantages—only from Bose:
The system's breakthrough loudspeaker produces wide, uniform sound coverage of nearly 180 degrees—onstage and throughout an audience of up to several hundred—with little dropoff in volume and tone.
The Model II system also features Articulated Array speaker technology for better tonal balance. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. Even people off to the sides of these stage speakers enjoy well-balanced, detailed sound.
Full, flexible bass:
The high-performance B2 bass module delivers greater low-frequency output when you need more powerful bass for larger audiences. The module includes three settings for increased flexibility. The normal setting is ideal for bass guitar or when miking a kick drum. A higher setting is designed for DJ/music playback applications. And the lower setting works well for acoustic guitar and vocals.
You can power one B2 bass module on a single L1 power stand. And the optional PackLite® power amplifier lets you add a second B2 bass module for maximum low-end power.
Easy and efficient:
The L1 Model II power stand weighs only 24 pounds, and its four retractable legs make it easy to transport and set up. The power stand also has a simplified control section; the single line-level input can be used with instruments, mics, mixers, laptops, MP3 players or DVD systems.
All of the system's components are also built to handle the road. The loudspeaker has a rugged, reinforced grille, and each package includes padded carrying bags for major components.
Multichannel flexibility:
The optional T1 ToneMatch audio engine adds four more channels, so you can expand the system and connect additional instruments and microphones. You can also use the ToneMatch engine to fine-tune your sound with powerful, proprietary tone-shaping tools.
- Spatial Dispersion™ and Articulated Array® speaker technologies in the loudspeaker produce wide, uniform sound coverage. The 24 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure—creating nearly 180 degrees of horizontal coverage and consistent tonal balance.
- Integrated power amplifiers in the power stand provide clean, precise amplification for L1 Model II system with up to two B1 bass modules or one B2 bass module.
- ToneMatch® port on power stand for digital audio and power connection to ToneMatch audio engine.

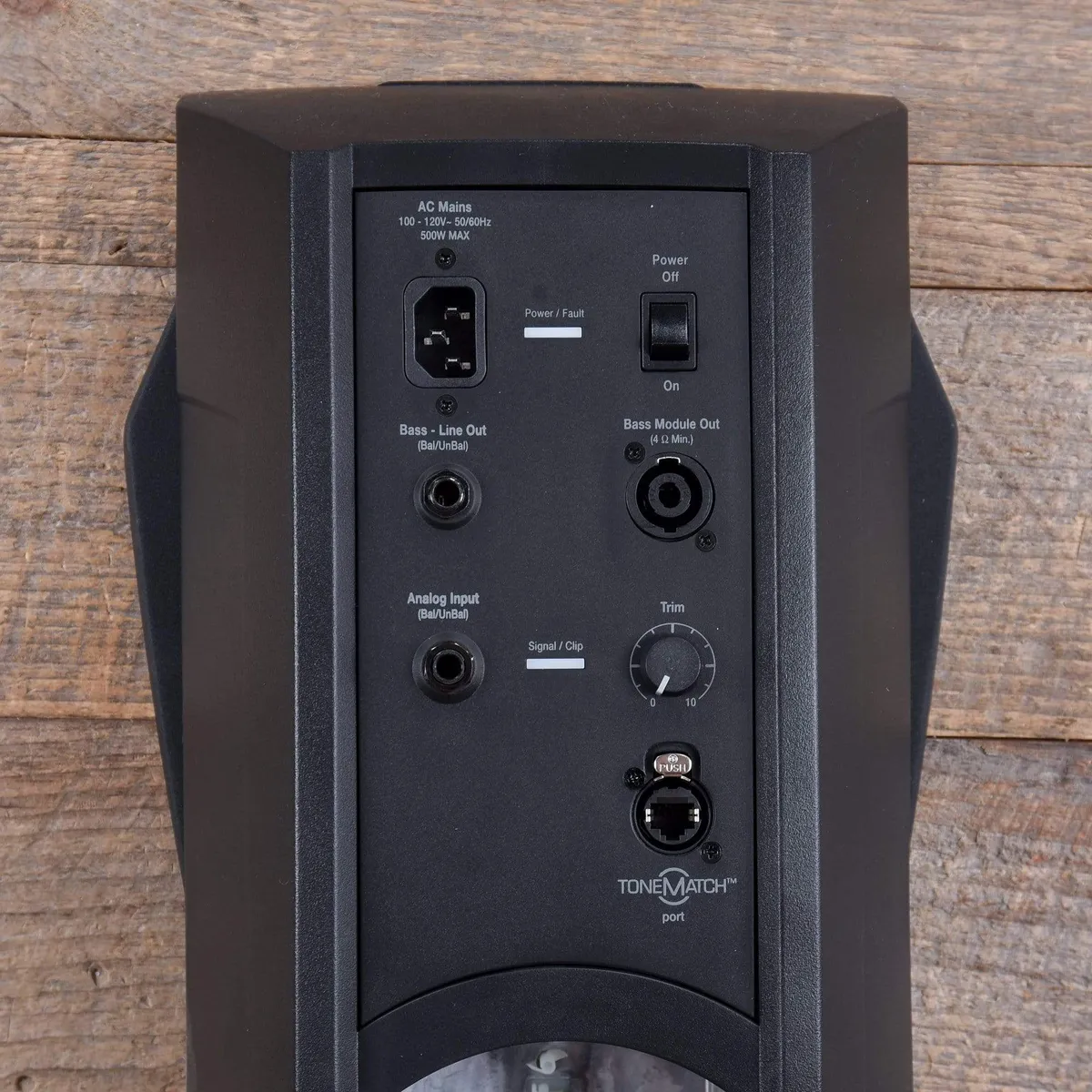

- Analog input, trim control and signal/clip LED for line-level analog input via ¼" TRS phone cable. Can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.
- Bass module out for amplified bass output signal to one or two B1 bass modules or one B2 bass module. L1 system automatically adjusts equalization appropriately when bass modules are connected.
- Bass line out delivers post-DSP bass signal output. Accepts ¼" TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose® PackLite® amplifier with up to two additional bass modules.
- Retractable legs provide stability for streamlined power stands and loudspeakers. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport

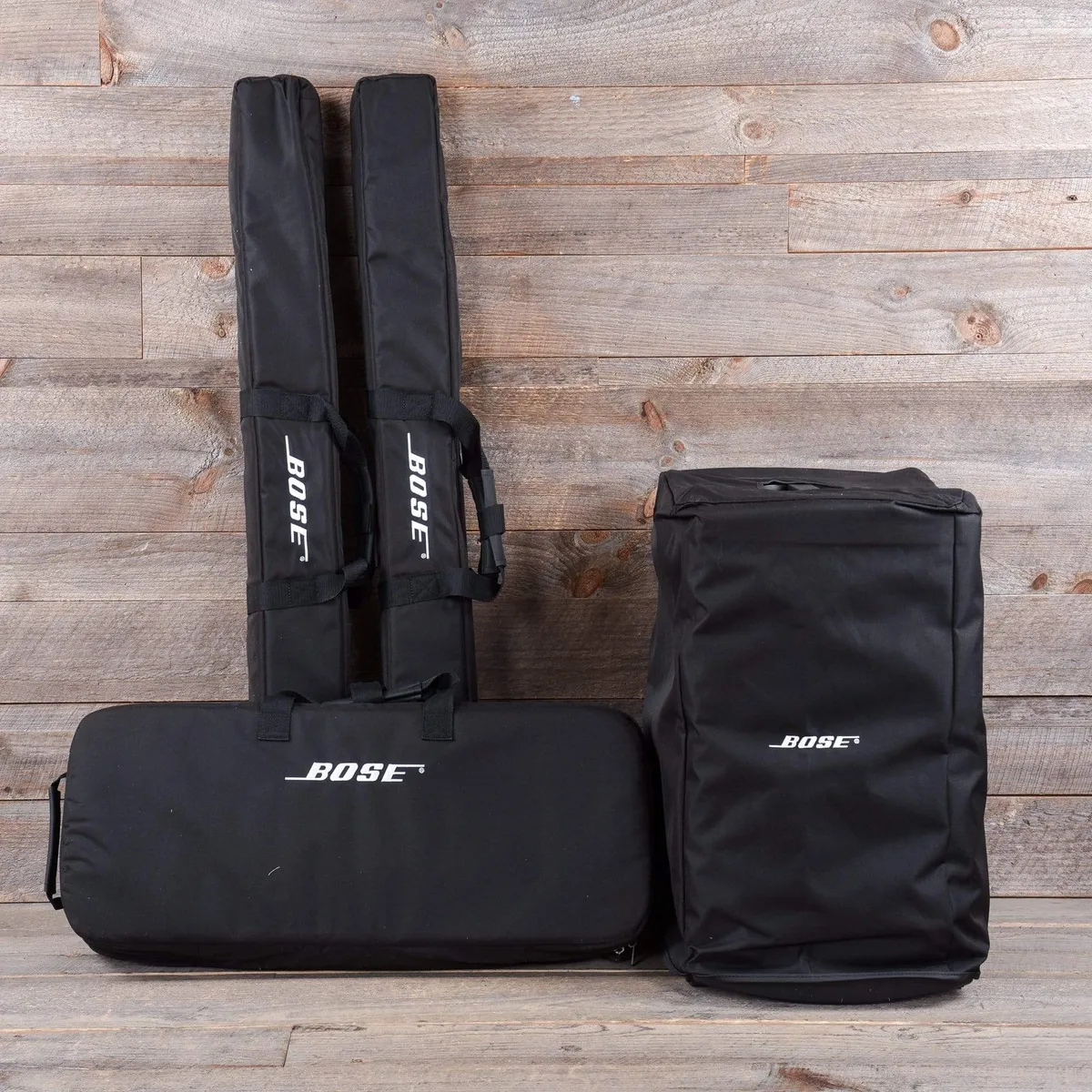

- Convenient carry bags—one each for the loudspeaker, power stand and bass module—make getting to and from your gig that much easier.
L1 Model II Cylindrical Radiator® loudspeaker top: 43.5" H x 3.5" W x 4" D (16.3 lbs)
L1 Model II Cylindrical Radiator® loudspeaker bottom: 43.5" H x 3.5" W x 4" D (17.4 lbs)
L1 Model II power stand: 5" H x 10" W x 27" D (23.7 lbs)
B2 bass module: 23.4" H x 13.31" W x 18.9" D (45 lbs)
In the box:
- L1 Model II power stand and cord
- L1 Model II Cylindrical Radiator loudspeaker (top and bottom)
- Loudspeaker carrying bags
- Power stand carrying bag
- B2 bass module and cable
- B2 slip cover
